Supertech S54 Valvetrain Kit - LASH CAP ONLY
$1,499.99
Description

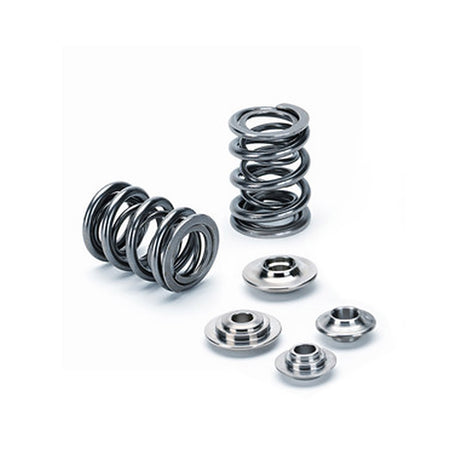

SPRING & RETAINER KIT
Supertech Spring / Retainer kits are precision matched sets for a complete valvetrain overhaul. Developed for the performance enthusiast that wants the best the industry has to offer, Supertech Spring / Retainer kits are second to none in terms of performance, quality and value.
Specifications:
- Type: Dual Spring
- Press.Seat: 82lbs @ 41.00mm
- Press.Open: 182lbs @ 10mm
- Max Lift: 15.50mm
- Coil Bind: 25.50mm
- Rate: 10.00lbs/mm
- Retainer: RET-BM2521/T1S-LC
- Spring : SPR-2521-BM
- Seat Locator: SEAT-BMS54
- This kit is to be used with BMIVN-1040-LC, BMEVI-1040-LC and lash caps
- BMW M3 2001-2006
- BMW Z3 2001-2002
- BMW Z4 2006-2008
Black Nitrided Intake Valve
BMIVN-1040S-LC
- Head Diam: 35.00mm
- Stem Diam: 5.97mm
- Length: 117.50mm
- Valve Type: Intake
- Material: Black Nitrided
Inconel Exhaust Valve
BMEVI-1040S-LC
- Head Diam: 30.50mm
- Stem Diam: 5.95mm
- Length: 119.10mm
- Material: Inconel
- Valve Type: Exhaust
****NOTE: MUST BE USED WITH LC-60 LASH CAPS****
